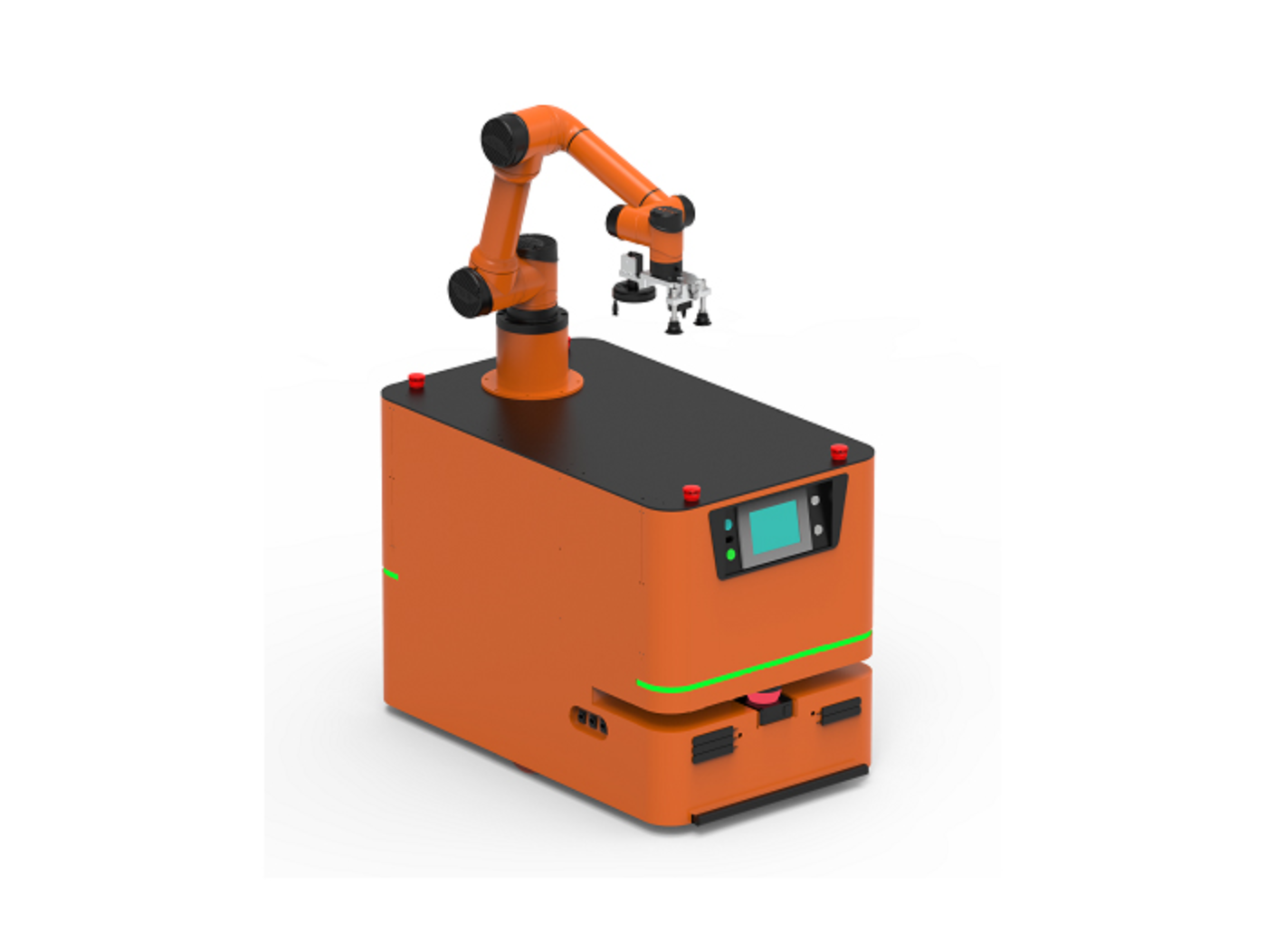

The composite AGV not only integrates the working units such as AGV and robot arm, but also adopts the robot visual positioning technology for secondary positioning, which meets the harsh requirements for the motion accuracy of the entire mechanical structure and avoids the sub-standard positioning accuracy caused by the accumulated accuracy errors of multiple moving units such as AGV and robot arm. It can make the robot work methodically and cooperate with each other. The composite robot can realize the basic functions such as handling and loading materials, and can realize the rapid switching of different tools and fixtures and the intelligent sorting of materials.
| External Dimension(LxWxH)) | 1160*660*600MM |
| Moving Way | Magnetic Navigation, Laser Navigation |
| Drive Mode | Differential |
| Navigation Accuracy | ±10MM |
| Turing Radius | 670MM |
| Load Capacity | 400KG |
| Safety Protection | Laser/Mechanical Dual Protection |
| Lithium Battery Life | 48V60A |
| The Length of the Robotic Arm | 1100-1300MM |
| Accuracy of Robotic arm (including visual) | 0. 15MM |
| CCD Pixel | 500 Million |
| Alarm Method | Sound and Light Alarm |
| Speed | 1M/S |
