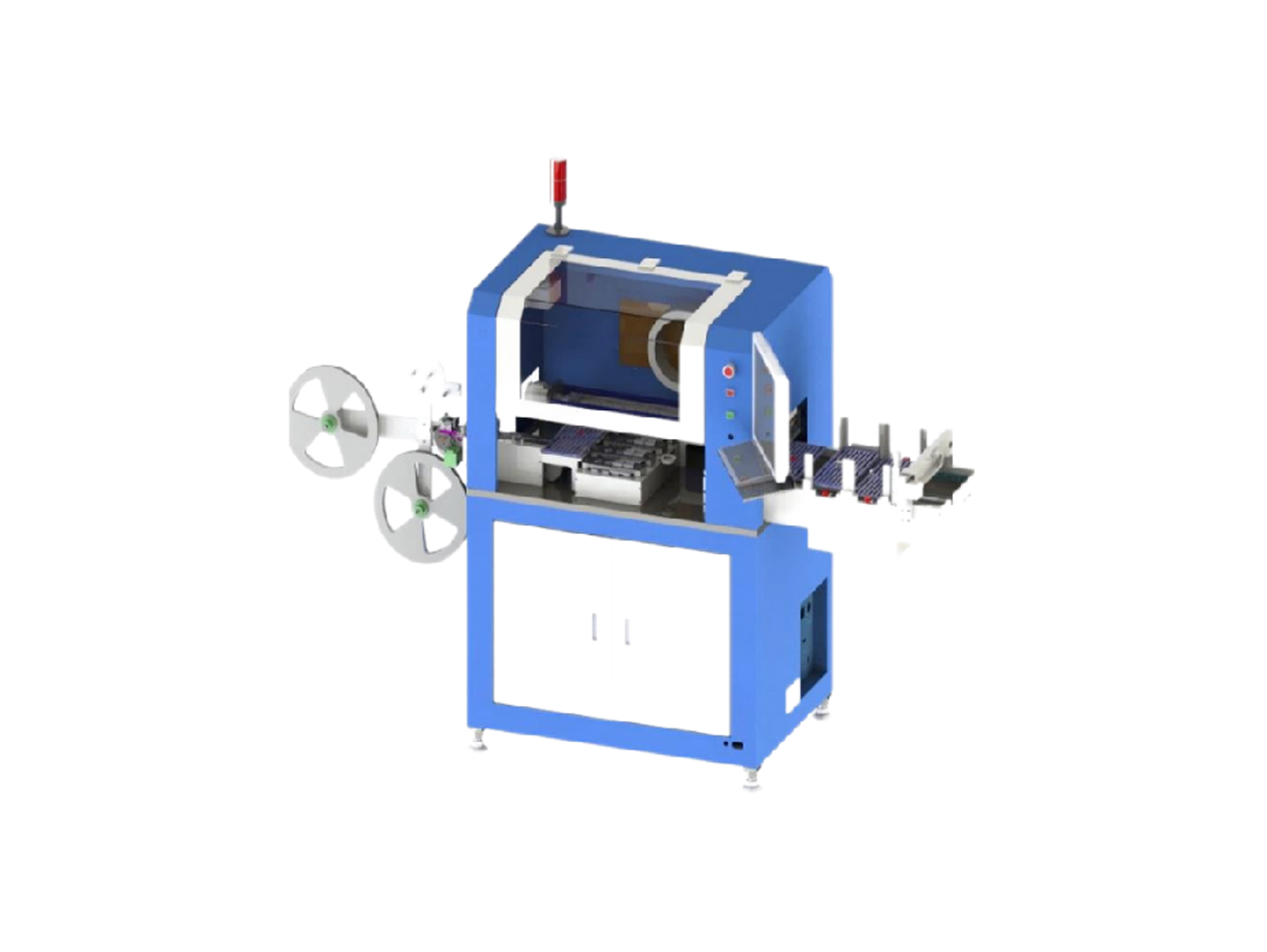

X, Z-axis manipulator, rotating double suction nozzle instead of manual single IC for picking and placing, reducing manpower and anomaly rate.
Support offline burner, automatically distinguish OK and NG IC and place the corresponding position coordinates.
1-8 burning stations can be customized to start, and different packages of burning seats can be pre-installed according to needs, which is more convenient to use.
The 90/180 degree IC direction can be rotated to solve the different directions of possible points of different batches of incoming materials.
| Operating System | PLC&WIN Control |
| Operation Interface | Human-machine Screen&HIMI |
| Control Mode | Bus Control |
| Movement Precision | ±0.01 mm |
| UPH | The burn completion time of the burn file is within 20 seconds |
| Transmission Speed | 0~0.5M/sec |
| Positioning Accuracy | ±0.05mm |
| Transport Height | |
| External Dimension | 1210*1300*1550mm |
| Weight | 300KG |
| Input Power | AC 220V |
| Air Pressure | 0.4-0.8MPa |
